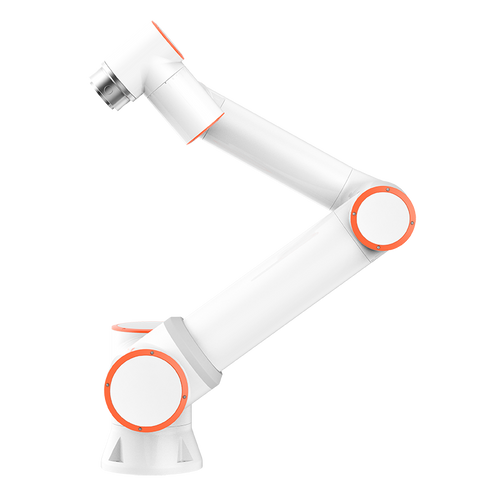

FAIRINO FR16

The FAIRINO FR16 is a six-axis collaborative robot arm designed for industrial automation applications requiring a 16 kg payload and 1034 mm working reach.

With ±0.02 mm movement repeatability and ±0.03 mm pose repeatability per ISO 9283, this cobot delivers the precision needed for demanding assembly, material handling, and machine tending operations.

All axes operate at speeds up to ±180°/s, with typical tool center point speed of 1 m/s.

The FR16 features IP66-rated protection for reliable performance in challenging shop floor environments.

The compact 190 mm footprint and 40 kg weight facilitate integration into existing production layouts.

Control is managed through a 10.1 inch teach pendant or mobile terminal web application, with graphical programming and drag teaching functionality to simplify setup and integration.

The arm operates within 0-45°C temperature range and up to 90% relative humidity (non-condensing).

Six rotating joints provide the flexibility to navigate complex tool paths and workspace constraints common in automated manufacturing cells.
