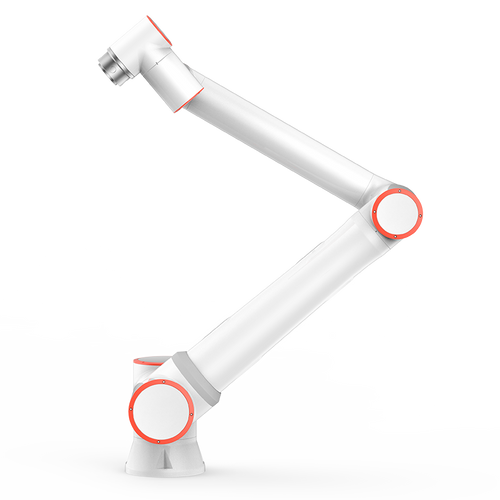

FAIRINO FR10

The FAIRINO FR10 is a six-axis collaborative robot arm designed for industrial automation applications requiring precision and environmental protection.

It handles payloads up to 10 kg across a 1400 mm reach, with movement repeatability of ±0.02 mm and pose repeatability per ISO 9283 of ±0.05 mm.

All six rotating joints operate at maximum speeds up to 180°/s, with typical TCP speed of 1 m/s.

The unit features IP66 protection, making it suitable for demanding application environments where dust and moisture resistance are required.

Programming is accomplished through graphical methods and drag teaching functionality, with control via a 10.1 inch teach pendant or mobile terminal web application.

The multi-axis linkage supports streamlined integration into existing production lines.

With a compact 190 mm footprint and weight of approximately 40 kg without cabling, the FR10 can be deployed in space-constrained work cells.

Operating temperature range is 0-45°C, with humidity tolerance up to 90% RH non-condensing.

The aluminum and steel construction balances durability with reasonable installed weight for integrators planning robotic work cell layouts.
