What is the main purpose of a gripper?

A gripper is an end effector that securely holds and positions objects during automated assembly, material handling, and pick-and-place operations. The DH Robotics CGC-80-10 is designed to grip cylindrical workpieces with adjustable force from 20 to 80 N per jaw and ±0.03 mm repeat accuracy.

Can the DH Robotics CGC-80-10 work in dusty or wet environments?

The CGC-80-10 is IP67 rated, which means it can operate safely in harsh environments with dust and liquid exposure across a temperature range of 0 to 40 degrees Celsius at up to 85% relative humidity. It also operates quietly below 50 dB, making it suitable for varied industrial settings.

How fast does the CGC-80-10 open and close?

The CGC-80-10 has a 0.5 second open-close cycle time, allowing rapid gripping and release for high-speed pick-and-place and assembly line applications. This speed is combined with high position repeat accuracy of ±0.03 mm for consistent, precise handling.

What protocols does the CGC-80-10 support?

The CGC-80-10 includes Modbus RTU and digital I/O as standard, with optional support for TCP/IP, CAN 2.0A, PROFINET, and EtherCAT to integrate with various robot controllers and PLCs. It operates on 24 V DC with a rated current draw of 0.5 A.

What is the maximum weight the CGC-80-10 can hold?

The CGC-80-10 has a payload capacity of up to 1.5 kg, with adjustable gripping force per jaw ranging from 20 to 80 N and a 10 mm stroke per jaw to accommodate different cylindrical object sizes.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In Stock3-Finger Grip

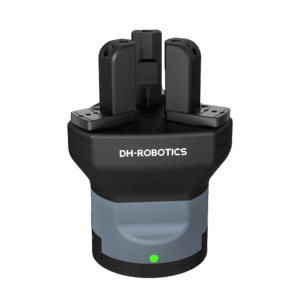

DH Robotics CGC-80-10 Electric Gripper, 80 N, 3-finger

Name: DH Robotics CGC-80-10 Electric Gripper, 80 N, 3-finger
Brand: DH Robotics
SKU: 1000
Price: 2595 USD
Availability: InStock

DH Robotics

$2,595.00

DH Robotics CGC-80-10 three-finger electric gripper delivering 20–80 N per jaw with 10 mm stroke, ±0.03 mm repeatability, and 0.5 s cycle time. IP67 rated, 24 V DC, Modbus RTU plus optional EtherCAT, PROFINET, CAN for precise cylindrical part handling up to 1.5 kg.

DH Robotics CGC-80-10 Three-Finger Electric Gripper is an industrial end effector designed for precise gripping of cylindrical workpieces in automated cells, including assembly lines, material handling, and pick-and-place applications.

Specifications:

Gripping force: 20–80 N per jaw
Stroke: 10 mm per jaw
Payload capacity: Up to 1.5 kg
Position repeat accuracy: ±0.03 mm
Operating voltage: 24 V DC
Noise level: Below 50 dB
IP67 rated for harsh environments (0–40 °C, 85% RH)

Features:

Three-finger centric mechanism ideal for gripping cylindrical objects securely
Rack and pinion with linear guide for smooth, repeatable actuation
Fast cycle time: 0.5 seconds open/close
Current draw: 0.5 A rated, 1.2 A peak

Communication Options:

Standard: Modbus RTU (RS485), digital I/O
Optional: TCP/IP, USB 2.0, CAN 2.0A, PROFINET, EtherCAT for flexible integration

Use Cases:

CGC-80-10 is suited to gripping, handling, and positioning cylindrical parts in automated cells, assembly lines, material handling stations, and pick-and-place operations.

Application Compatibility:

Mounts readily to robot arms from various manufacturers with standard interfaces. The CG series offers additional models and stroke sizes for different requirements. See more gripper options and all end effectors.

Frequently Asked Questions:

What materials can CGC-80-10 grip? Suitable for metals, plastics, glass, and other cylindrical objects within weight capacity.
Is integration easy? Supports major industrial protocols for fast integration with robot controllers and PLCs.
Industry standards? Certified to IP67 for dust and liquid protection; manufactured by DH Robotics, a recognized automation specialist.

Gripping Force (per jaw)20 ~ 80 N

Stroke (per jaw)10 mm

Recommended Workpiece Weight1.5 kg

Opening / Closing Time: 0.5 s / 0.5 s
Repeat Accuracy (Position): ± 0.03 mm
Noise Emission: < 50 dB
Driving Method: Rack and Pinion + Linear Guide
Communication Interface: Standard: Modbus RTU (RS485) / Digital I/O; Optional: TCP/IP / USB 2.0 / CAN 2.0A / PROFINET / EtherCAT
Rated Voltage: 24 V DC ± 10 %
Rated Current: 0.5 A
Peak Current: 1.2 A
IP Class: IP 67
Recommended Environment: 0 ~ 40 °C / under 85 % RH
Weight: 1.5 kg
Payload: 1.5 kg
Gripping Force: 20 to 80 N per jaw
Stroke: 10 mm per jaw
Repeatability: ±0.03 mm
Cycle Time: 0.5 s opening, 0.5 s closing
Noise Level: < 50 dB
IP Rating: IP67
Operating temperature: 0 to 40 °C
Operating humidity: Up to 85% RH
Power Supply: 24 V DC
Communication: Modbus RTU via RS485, Digital I/O, optional: TCP/IP, USB 2.0, CAN 2.0A, PROFINET, EtherCAT
Model: CGC-80-10
Material: plastic / metals

Choose stroke and finger config from CG series lineup
Grips cylinders securely, 20-80 N per jaw adjustable
10 mm stroke per jaw, ±0.03 mm repeat accuracy
Quiet operation below 50 dB, IP67 rated for harsh environments
24 V DC powered, 0.5 A rated current draw
Modbus RTU standard, TCP/IP, CAN 2.0A, PROFINET, EtherCAT optional
Handles 1.5 kg payload, 0.5 second open-close cycle

: A gripper is an end effector that securely holds and positions objects during automated assembly, material handling, and pick-and-place operations. The DH Robotics CGC-80-10 is designed to grip cylindrical workpieces with adjustable force from 20 to 80 N per jaw and ±0.03 mm repeat accuracy.
: The CGC-80-10 is IP67 rated, which means it can operate safely in harsh environments with dust and liquid exposure across a temperature range of 0 to 40 degrees Celsius at up to 85% relative humidity. It also operates quietly below 50 dB, making it suitable for varied industrial settings.
: The CGC-80-10 has a 0.5 second open-close cycle time, allowing rapid gripping and release for high-speed pick-and-place and assembly line applications. This speed is combined with high position repeat accuracy of ±0.03 mm for consistent, precise handling.
: The CGC-80-10 includes Modbus RTU and digital I/O as standard, with optional support for TCP/IP, CAN 2.0A, PROFINET, and EtherCAT to integrate with various robot controllers and PLCs. It operates on 24 V DC with a rated current draw of 0.5 A.
: The CGC-80-10 has a payload capacity of up to 1.5 kg, with adjustable gripping force per jaw ranging from 20 to 80 N and a 10 mm stroke per jaw to accommodate different cylindrical object sizes.

Electric gripper versus pneumatic for precision cylinder handling:

The CGC-80-10 is an electric three-finger gripper designed for repeatable, quiet gripping of cylindrical parts. It contrasts with pneumatic grippers in cycle speed, control precision, and operating environment fit.

For delicate or precision-critical assembly work needing ±0.03 mm repeat accuracy, electric actuation eliminates pneumatic drift and pressure variation.
In noise-sensitive or indoor facilities, the sub-50 dB operation suits confined assembly lines and shared workcells without sound dampening.
For harsh or washdown environments, IP67 sealing protects against moisture and dust where pneumatic fittings require extra shielding.
On payloads under 1.5 kg with 10 mm stroke cylinders, the compact three-finger design fits tight robot wrists and pick-and-place cells without custom brackets.
In facilities with 24 V DC power already present, direct wiring and low current draw (0.5 A rated) eliminate pneumatic line routing and regulator maintenance.
