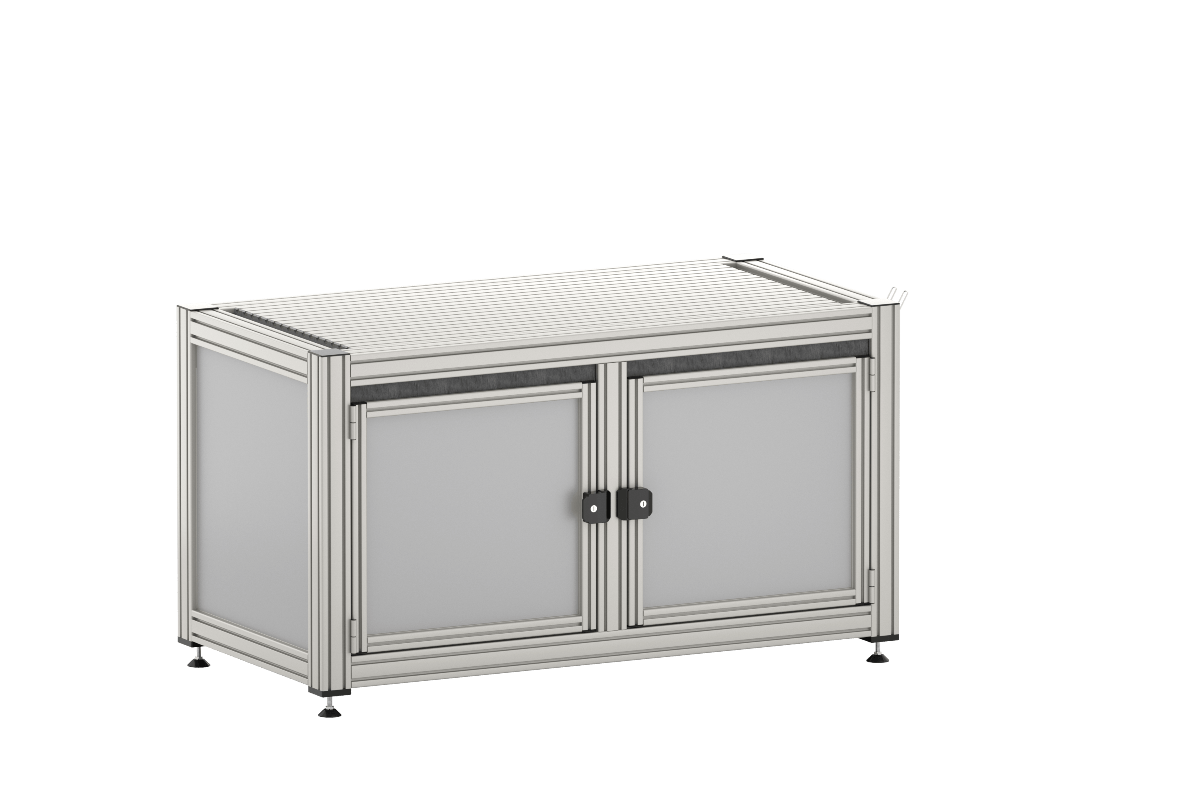

Basic robot workstation

This workstation provides a 1600x800 mm frame designed to support robot installations in compact work cells.

The unit features an item Groove Plate work surface that allows flexible positioning of robots and peripheral equipment.

Measuring 800 mm in length with overall dimensions of 1600x800 mm, the frame incorporates steplessly height-adjustable feet for leveling on uneven floors.

The integrated lockable base cabinet offers enclosed storage for control units, power supplies, and other electrical components, protecting them from dust and unauthorized access.

Cable management is handled through brush strips integrated into the work surface above the cabinet doors, providing a clean route for umbilicals running to the robot arm.

The grooved work surface enables toolless mounting and repositioning of fixtures using standard T-slot compatible hardware.

The base cabinet includes suspension provisions for hanging controllers and battery backup systems.

Item manufactures robot mounting plates compatible with various robot brands that interface with this frame system.

Appropriate for machine shops and integrators building custom robot work cells where standardized framing, electrical enclosure, and flexible mounting are required.
