What robot types can I build with the igus Apiro Robotic Kit RL-A9.0200?

The kit supports eight configurable kinematic designs including room linear, flat linear, mini articulated, picker, pusher, SCARA robots, and 360° rotary systems. You can rapidly assemble and reconfigure the same kit to experiment with different robot architectures.

Is the Apiro Robotic Kit RL-A9.0200 compatible with standard stepper motors?

Yes, the kit offers plug-and-play compatibility with NEMA 17 and NEMA 23 stepper motors, allowing you to integrate commonly available motors without custom adapters.

How precise is the Apiro Robotic Kit RL-A9.0200?

The kit delivers 1 mm repeatability, ensuring precise position control across all eight configurable robot designs. The drygear worm gearboxes include minimal backlash of less than 0.5 degrees.

Do the gearboxes in the Apiro kit require lubrication?

No, the kit uses lubrication-free drygear technology, which cuts maintenance and contamination while maximizing component life. The gearboxes are rated over 1 million cycles without needing oil or grease.

What controller does the Apiro Robotic Kit RL-A9.0200 use?

The kit connects via the igus D1 dryve motor controller, which supports Modbus TCP, CANopen, and digital/analog I/O interfaces for flexible system integration.

Is the Apiro kit suitable for education and prototyping?

Yes, the kit is designed for education, research, prototyping, and startups, enabling rapid assembly and experimentation for custom automation projects. Its modular design allows multiple robot configurations from a single kit.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockCompact Design

igus Apiro Robotic Kit RL-A9.0200, Modular

Name: igus Apiro Robotic Kit RL-A9.0200, Modular
Brand: igus
SKU: 3053
Price: 2800 USD
Availability: InStock

igus®

$2,800.00

Build eight different robot configurations with this modular igus Apiro kit (RL-A9.0200). Includes lubrication-free drygear worm gearboxes with less than 0.5 degrees backlash, cantilever axes, couplings, and NEMA 17 stepper motors. Achieves 1 mm repeatability and 1 million+ cycle lifetime. Controlled via igus D1 dryve with Modbus TCP and CANopen support. Ideal for education, research, prototyping, and learning multiple robot kinematics.

The igus Apiro Robotic Kit RL-A9.0200 is a lubrication-free modular robotic kit for education, prototyping, and research settings, offering a flexible drygear worm gearbox platform to build custom robot kinematics.

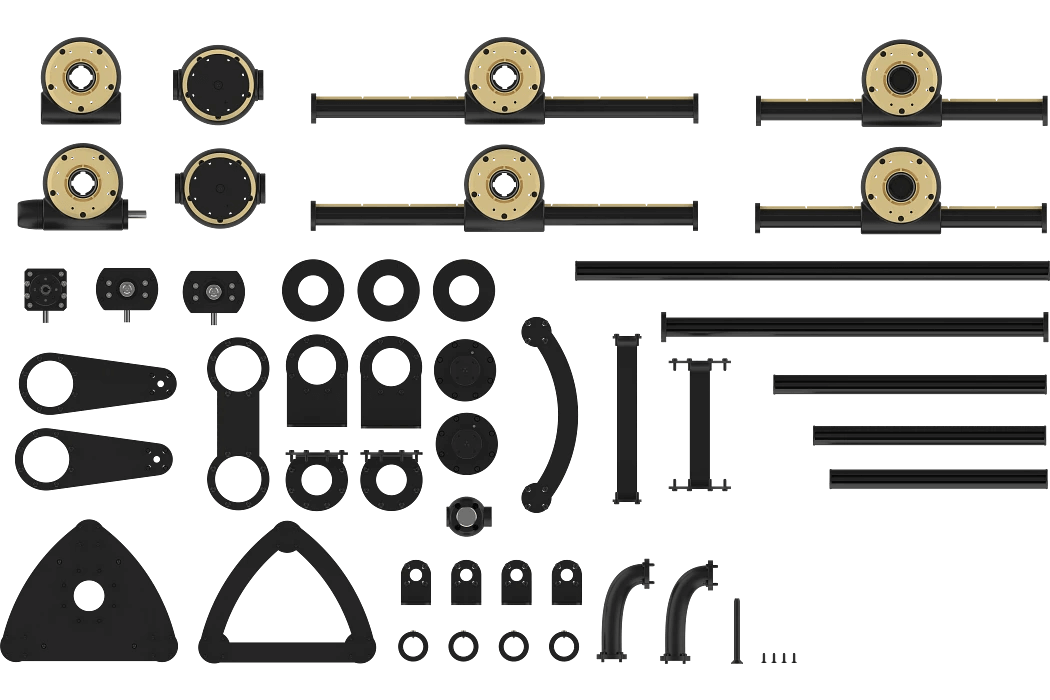

Modular Robotic Kit Components:

Includes drygear Apiro worm gearboxes with minimal backlash <0.5°
Configurable for eight robot types, allowing rapid assembly and experimentation
Compatible with NEMA 17 and NEMA 23 stepper motors
Connects via igus D1 dryve controller, which supports Modbus TCP and CANopen

Headline Specifications:

Repeatability: 1 mm
Gear ratios: 1:4, 1:32, 1:64
Rated lifetime: >1 million cycles
Payload and axis configuration depend on selected kinematic design

Applications:

Used in educational institutions for robotics curriculum and STEM labs
Research facilities and startups using modular robotic systems for prototyping
Allows construction of room and flat linear robots, mini articulated robots, pickers, and SCARA robots

Technical Definitions Explained:

Drygear: Lubrication-free polymer gearboxes, reducing maintenance and contamination
Worm gearbox: Compact gearboxes used for high precision and low backlash applications
CANopen: Standardized communication protocol for industrial automation and robotic control
NEMA 17/23: Stepper motor mounting standards, allowing plug-and-play motor integration
Repeatability: Maximum error between positions is just 1 mm

Why Choose igus Apiro Robotic Kit RL-A9.0200:

Enables experimentation with multiple robot architectures from one kit
Lubrication-free drygear technology ensures longer life and low maintenance
Ideal for modular robotic system for education, prototyping, and rapid design iteration
CANopen compatible robot kit integrates easily with common industrial and research control systems
Competitive advantage: flexibility, plug-and-play interface, cost-effective learning and rapid prototyping

Internal Linking Opportunities:

Explore compatible worm gears, stepper motors, and igus D1 dryve controllers in our accessories section for expanding your Apiro robotic kit.
Visit our support page for assembly guides and controller integration resources.

Buyer Questions Addressed:

Is it beginner-friendly? Yes, designed for educational use and rapid setup, suitable for robotics newcomers.
What support is available? Online guides and expert assistance for kit assembly and controller integration.

Repeatability1 mm

Model: RL-A9.0200
Payload: Not specified
Reach: Not specified
Gearbox Backlash: Less than 0.5 degrees
Gearbox Lifetime: Exceeding 1 million cycles
Motor Compatibility: NEMA 17, NEMA 23
Supported Accessories: Encoders, brakes, sensors
Communication Protocols: Modbus TCP, CANopen
I/O Options: Digital, analog

Minimal backlash drygear worm gearboxes, 1:4, 1:32, 1:64 ratios, rated over 1 million cycles
Control eight robot types via igus D1 dryve motor controller supporting Modbus TCP, CANopen, and digital/analog I/Os
Plug-and-play with NEMA 17 and NEMA 23 stepper motors, encoders, brakes, and sensors
Rapid assembly and experimentation for custom automation in research, education, prototyping, or startups
Lubrication-free drygear technology cuts maintenance and contamination while maximizing component life
Repeatability of 1 mm ensures precise position control across all eight configurable kinematic designs
Build room linear, flat linear, mini articulated, picker, pusher, SCARA robots, or 360° rotary systems

: The kit supports eight configurable kinematic designs including room linear, flat linear, mini articulated, picker, pusher, SCARA robots, and 360° rotary systems. You can rapidly assemble and reconfigure the same kit to experiment with different robot architectures.
: Yes, the kit offers plug-and-play compatibility with NEMA 17 and NEMA 23 stepper motors, allowing you to integrate commonly available motors without custom adapters.
: The kit delivers 1 mm repeatability, ensuring precise position control across all eight configurable robot designs. The drygear worm gearboxes include minimal backlash of less than 0.5 degrees.
: No, the kit uses lubrication-free drygear technology, which cuts maintenance and contamination while maximizing component life. The gearboxes are rated over 1 million cycles without needing oil or grease.
: The kit connects via the igus D1 dryve motor controller, which supports Modbus TCP, CANopen, and digital/analog I/O interfaces for flexible system integration.
: Yes, the kit is designed for education, research, prototyping, and startups, enabling rapid assembly and experimentation for custom automation projects. Its modular design allows multiple robot configurations from a single kit.

Modular kit versus pre-built industrial robots:

The Apiro RL-A9.0200 is a buildable robotic platform, not a finished production robot. Choose it over pre-built units when you need to experiment with multiple arm designs, customize kinematics for research, or prototype new applications without committing to a single form factor.

For education labs or startups, eight configurable kinematic options (linear, SCARA, articulated, picker, pusher, rotary) let you test different architectures from one kit rather than buying separate robots.
Lubrication-free drygear gearboxes eliminate grease maintenance and contamination, so lab or prototype environments stay clean over more than 1 million cycles.
Plug-and-play NEMA 17 and NEMA 23 stepper motor compatibility and Modbus TCP/CANopen support speed assembly and integration with existing control systems in research facilities.
1 mm repeatability and minimal backlash (<0.5 degree) enable precise position control for delicate handling or assembly tasks during prototype validation.
Rapid reconfiguration suits fast iteration, prototyping, and design verification where trial-and-error or design changes happen frequently.
