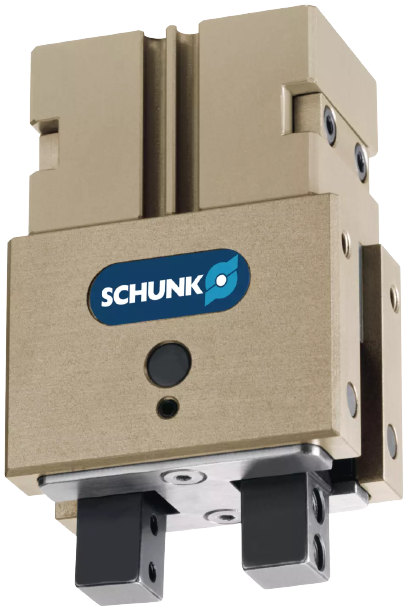

Angular parallel gripper GAP 20-030

The SCHUNK GAP 20-030 is a pneumatic angular parallel gripper designed for automated handling of small parts in confined mounting environments.

Weighing 0.3 kg with 1 mm stroke per jaw, this gripper delivers a maximum gripping force of 105 N and offers repeatability of 0.05 mm for consistent positioning accuracy.

Pneumatic actuation provides straightforward integration into existing compressed air systems, while the rigid housing and optimized kinematics support extended service life in demanding production environments.

The gripper operates at ambient temperatures up to 60°C.

Optional sensor positions are available to monitor jaw status, supporting process verification and fault detection in automated cells.

The compact form factor suits applications where mounting space is restricted and angular gripper motion is required.
