Angular | 3-Finger | Pneumatic | 0.6kg

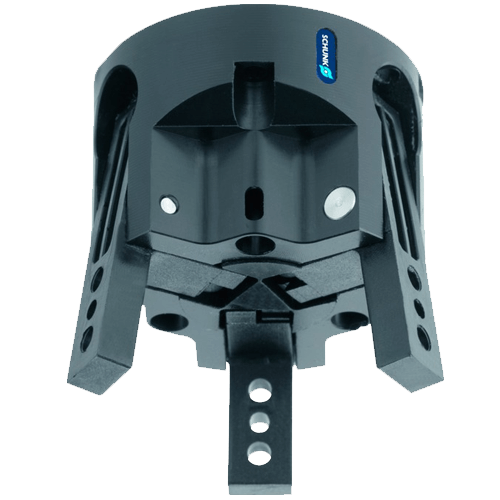

This SCHUNK pneumatic angular gripper uses a synchronized three-jaw mechanism to provide concentric gripping of rotationally symmetric components in automated handling applications.

At just 0.09 kg, the unit delivers a maximum gripping force of 682 N and is rated for workpieces up to 0.6 kg.

The gripper achieves 0.1 mm repeatability with fast switching times between 0.02 and 0.03 seconds, supporting high-throughput cycle requirements.

Pneumatic actuation is paired with an integrated spring-return mechanism for reliable operation.

The design is suitable for environments with ambient temperatures up to 90 °C.

This gripper is appropriate for precision assembly, component feeding, and other tasks where compact three-finger angular gripping with repeatable, centered positioning is required.
