ALTRATEC LAT Flex | circulating conveyor | Enclosure-free

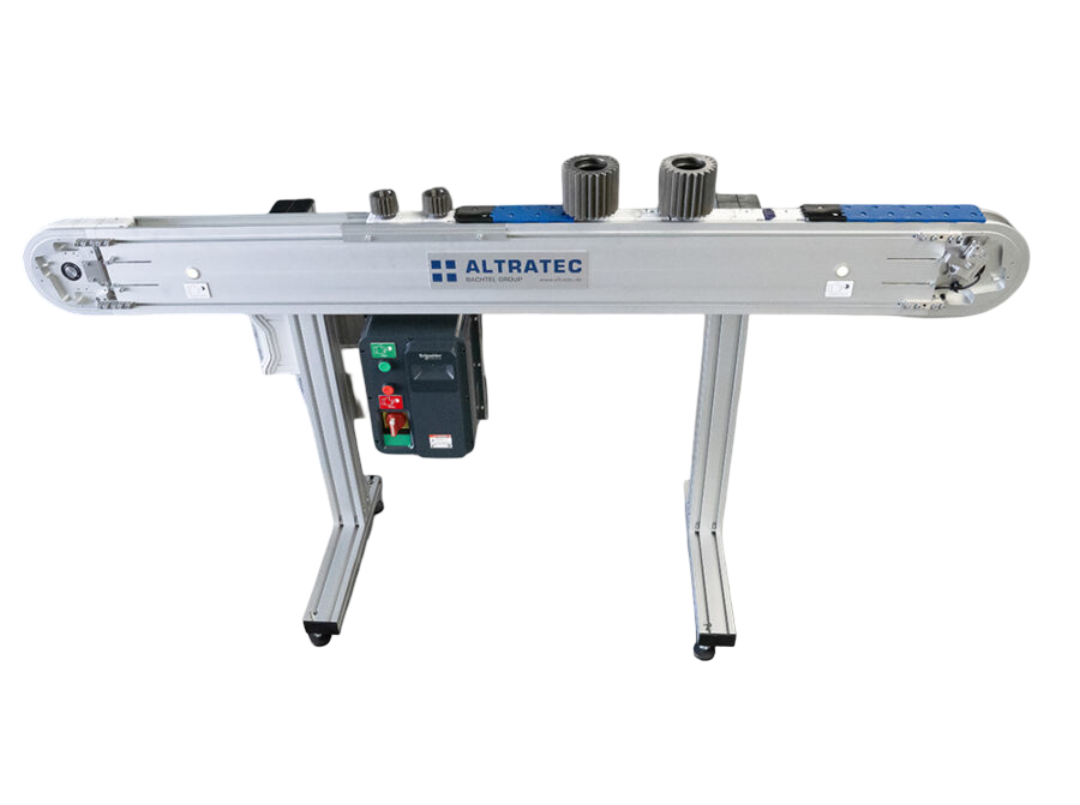

The ALTRATEC LAT Flex is a modular circulating conveyor designed for workpiece carrier transport in production environments.

This 40 mm wide system operates without protective enclosures due to its worker-safe design, conveying at approximately 8 m/min across system lengths up to 25 meters.

The unit supports a total payload of 225 kg while handling individual workpiece carriers up to 5 kg per segment.

Powered by a 90-watt electric motor available in 230 V or 400 V configurations, the LAT Flex eliminates compressed air requirements.

Positioning accuracy reaches ±0.3 mm in X/Y axes and ±0.5 mm in Z.

Electromagnetic stoppers controlled via digital I/O provide precise positioning without pneumatic components.

The system integrates into existing automation architectures and supports flexible mounting configurations including upright, suspended, or 90-degree rotated orientations.

Multi-track layouts accommodate larger components such as bumpers or instrument panels.

Applications include assembly lines, packaging stations, and material flow solutions in automotive, electronics, and plastics manufacturing.

The complete system weighs 66 kg.
