What are adaptive grippers and how do they work?

Adaptive grippers use a linkage-type mechanism that automatically adjusts finger position to conform to the shape of the workpiece, allowing them to securely grip round, spherical, and irregular shapes without manual reconfiguration. The DH Robotics AG-160-95 uses this design to handle diverse part sizes across a 95 mm stroke while maintaining position repeatability within ±0.03 mm.

Can the AG-160-95 gripper handle irregular shapes?

Yes, the AG-160-95 features a linkage-type adaptive mechanism specifically designed to grip round, spherical, and oddly shaped workpieces reliably. Replaceable fingertips also allow customization for specific part geometries.

What gripping force does the DH Robotics AG-160-95 provide?

The AG-160-95 delivers adjustable gripping force from 45 to 160 N, allowing secure handling of parts up to 3 kg. The force range can be tuned to match your specific workpiece requirements.

What communication protocols does the AG-160-95 support?

The AG-160-95 includes Modbus RTU and digital I/O as standard, with optional support for TCP/IP, USB 2.0, CAN 2.0A, PROFINET, and EtherCAT to integrate with a wide range of industrial controllers. This flexibility suits both new installations and equipment upgrades.

Is the AG-160-95 electric gripper waterproof?

The AG-160-95 is rated IP54, which provides protection against dust and splashing water but is not suitable for full immersion. It operates reliably in environments up to 85 percent relative humidity and temperatures from 0 to 40 degrees Celsius.

How fast is the open and close cycle on the AG-160-95?

The AG-160-95 completes a full open and close cycle in 0.9 seconds, supporting efficient pick-and-place, machine tending, and palletising workflows.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In Stock6-Axis Precision

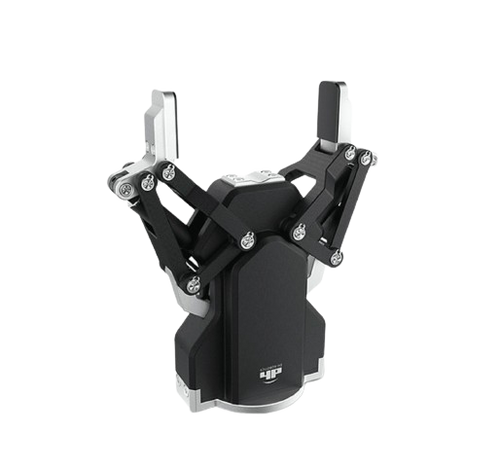

DH Robotics AG-160-95 Electric Gripper, Two Finger, 95 mm Stroke

Name: DH Robotics AG-160-95 Electric Gripper, Two Finger, 95 mm Stroke
Brand: DH Robotics
SKU: 1009
Price: 3195 USD
Availability: InStock

DH Robotics

$3,195.00

DH Robotics AG-160-95 electric gripper with 95 mm stroke and 45-160 N gripping force per jaw. Linkage-driven adaptive design grips round, spherical, and irregular shapes up to 3 kg. 24 V DC, 0.9 s cycle time, IP54, Modbus RTU plus optional TCP/IP, CAN, PROFINET, EtherCAT. CE, FCC, RoHS certified.

DH Robotics AG-160-95 Two-Finger Electric Gripper is an adaptive gripper for industrial automation and robotics, designed for secure handling of diverse and irregular workpieces in pick-and-place, machine tending, and palletising applications.

Features:

Linkage-type adaptive mechanism for gripping round, spherical, and irregular shapes
Replaceable fingertips facilitate customization for specific parts
Self-locking grip ensures stability and safety
Intelligent feedback supports real-time monitoring

Headline Specifications:

95 mm stroke, accommodating various part sizes
45 to 160 N adjustable gripping force for secure handling up to 3 kg
Position repeatability: ±0.03 mm
Cycle time: 0.9 s open/close
Weight: 1 kg
Operating voltage: 24 V DC
IP54 protection rating
Dimensions and detailed specs available in technical section

Communications:

Standard: Modbus RTU, digital I/O
Optional: TCP/IP, USB 2.0, CAN 2.0A, PROFINET, EtherCAT for broad integration compatibility

AG-160-95 supports integration with a wide range of industrial controllers, making it suitable for both new installations and upgrades.

Certifications:

CE
FCC
RoHS

Applications and Compatibility:

Robotic systems requiring adaptive gripping, such as universal robots and custom automation platforms
Ideal for handling fragile, oddly shaped, or variable workpieces in manufacturing, logistics, laboratory automation, and warehouse robotics

Compared to parallel grippers, AG-160-95’s linkage design offers superior performance on non-standard parts, reducing manual intervention and increasing process flexibility.

Integration Examples:

Mounts easily to robot arms with standard interfaces used in End Effectors & Tooling categories
Suitable for environments up to 85% relative humidity and 0–40°C temperature range

Explore End Effectors & Tooling, Grippers, and other robotics components for compatible products.

FAQs:

Can AG-160-95 handle irregular shapes? Yes, the adaptive linkage mechanism provides stable grasping of complex geometries.
What protocols does AG-160-95 support? Modbus RTU and digital I/O are standard, with TCP/IP, USB 2.0, CAN 2.0A, PROFINET, and EtherCAT available for integration flexibility.
Is AG-160-95 washable? The gripper is rated IP54, offering protection against dust and splashing water, but not full immersion.

Brand: DH Robotics
SKU: AG-160-95
Weight: 1 kg
Availability: Contact sales for lead time

Weight1 kg

Gripping force (per jaw)45~160 N

Stroke Length: 95 mm
Recommended workpiece weight: 3 kg
Opening/Closing time: 0.9 s/0.9 s
Repeat accuracy (position): ± 0.03 mm
Noise emission: < 60 dB
Driving method: Screw nut + Linkage mechanism
Communication interface: USB2.0 / CAN2.0A) / Optional EtherCAT / Standard: Modbus RTU (RS485) / Digital I/O; Optional: TCP/IP / PROFINET
Rated voltage: 24 V DC ± 10%
Rated current: 0.8 A
Peak current: 1.5 A
IP class: IP 54
Recommended environment: 0~40°C / under 85% RH
Model: AG-160-95
Payload: 3 kg
Gripping Force: 45 to 160 N
Stroke: 95 mm
Repeatability: ±0.03 mm
Cycle Time: 0.9 s
Power Supply: 24 V DC
Communication: Modbus RTU, digital I/O, TCP/IP, USB 2.0, CAN 2.0A, PROFINET, EtherCAT
IP Rating: IP54
Operating temperature: 0 to 40°C
Humidity: up to 85%
Noise: below 60 dB
Certification: CE, FCC, RoHS

Grips irregular shapes with linkage-type adaptive mechanism, DH Robotics proprietary design
Handles diverse part sizes across 95 mm stroke, up to 145 mm maximum
Secures round, spherical, and oddly shaped workpieces reliably
Adjusts 45 to 160 N gripping force for parts up to 3 kg
Repeats position within ±0.03 mm, open/close cycle 0.9 s
Integrates via Modbus RTU, digital I/O standard, TCP/IP, USB 2.0, CAN 2.0A, PROFINET, EtherCAT optional
Operates 24 V DC, rated IP54, survives 0–40°C and up to 85% humidity

: Adaptive grippers use a linkage-type mechanism that automatically adjusts finger position to conform to the shape of the workpiece, allowing them to securely grip round, spherical, and irregular shapes without manual reconfiguration. The DH Robotics AG-160-95 uses this design to handle diverse part sizes across a 95 mm stroke while maintaining position repeatability within ±0.03 mm.
: Yes, the AG-160-95 features a linkage-type adaptive mechanism specifically designed to grip round, spherical, and oddly shaped workpieces reliably. Replaceable fingertips also allow customization for specific part geometries.
: The AG-160-95 delivers adjustable gripping force from 45 to 160 N, allowing secure handling of parts up to 3 kg. The force range can be tuned to match your specific workpiece requirements.
: The AG-160-95 includes Modbus RTU and digital I/O as standard, with optional support for TCP/IP, USB 2.0, CAN 2.0A, PROFINET, and EtherCAT to integrate with a wide range of industrial controllers. This flexibility suits both new installations and equipment upgrades.
: The AG-160-95 is rated IP54, which provides protection against dust and splashing water but is not suitable for full immersion. It operates reliably in environments up to 85 percent relative humidity and temperatures from 0 to 40 degrees Celsius.
: The AG-160-95 completes a full open and close cycle in 0.9 seconds, supporting efficient pick-and-place, machine tending, and palletising workflows.

Adaptive electric gripper vs. parallel or pneumatic grippers:

The AG-160-95 uses a linkage-type adaptive mechanism to grip irregular, round, and oddly shaped parts reliably, unlike fixed-jaw parallel grippers that require parts to fit standard geometries. Choose this gripper when your parts vary in size or shape, or when you need secure handling without custom fingertip changeovers for each variant.

For round, spherical, or irregular workpieces up to 3 kg, the adaptive linkage self-adjusts across the 95 mm stroke, eliminating the need to reposition or reorient parts before gripping.
In fragile or delicate assembly tasks, adjustable force from 45 to 160 N prevents damage while maintaining ±0.03 mm repeatability for precision machine tending.
On high-mix pick-and-place lines, the replaceable fingertips allow quick customization for different parts without full gripper replacement.
In damp or washdown environments up to 85% humidity, the IP54 rating and 24 V DC electric drive outperform pneumatic grippers prone to moisture ingestion.
For integration into existing automation with Modbus RTU or EtherCAT, intelligent feedback enables real-time monitoring and adaptive force control that pneumatic systems cannot match.
