What is a delta arm robot?

A delta arm robot is a parallel-kinematic robot with three degrees of freedom, optimized for high-speed pick-and-place automation. The Fastech DLE-DR-360-FT is a three-axis delta robot that reaches 3 m/s velocity and 60 m/s² acceleration, making it faster than SCARA or cartesian robots for repetitive tasks.

How fast is the Fastech DLE-DR-360-FT?

The Fastech DLE-DR-360-FT reaches 3 m/s velocity with 60 m/s² acceleration, enabling rapid cycle times for high-speed pick-and-place applications. It achieves 0.5 mm repeatability across a 360 mm working diameter.

What can the DLE-DR-360-FT lift?

The Fastech DLE-DR-360-FT has a 5 kg payload capacity, making it suitable for lightweight parts in packaging, sorting, assembly, and laboratory automation. The robot itself weighs 15 kg.

What is the working area of the DLE-DR-360-FT?

The Fastech DLE-DR-360-FT has a 360 mm diameter working area with 0.5 mm repeatability for precise handling of parts. Its compact parallel design conserves workspace footprint in confined environments.

How does the DLE-DR-360-FT connect to a controller?

The Fastech DLE-DR-360-FT features an EtherCAT controller with CiA 402 Drive Profile integration, and also supports Modbus TCP, CANopen, and digital I/O connectivity. Closed-loop servo technology eliminates the need for gain tuning.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In Stock900mm Reach

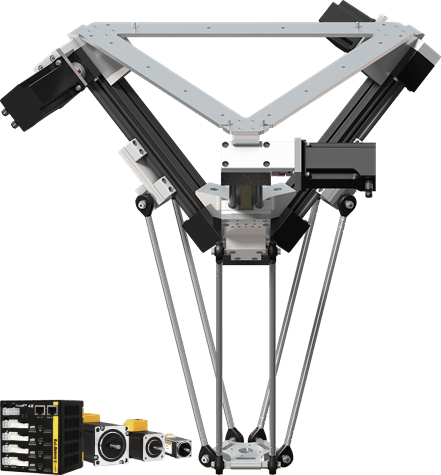

Fastech DLE-DR-360-FT Delta Robot, 5 kg, 360 mm

Name: Fastech DLE-DR-360-FT Delta Robot, 5 kg, 360 mm
Brand: Fastech
SKU: 3078
Price: 9200 USD
Availability: InStock

Fastech

$9,200.00

Fast, compact delta robot with 360 mm working diameter and 5 kg payload for high-speed pick-and-place, material handling, and light assembly. EtherCAT-controlled with 0.5 mm repeatability, 3 m/s speed, and Modbus TCP / CANopen connectivity.

Product Overview:

Fastech DLE-DR-360-FT is a three-axis delta robot engineered for industrial pick-and-place automation and parallel-kinematic material handling in confined workspaces.

Specifications:

360 mm diameter working area
5 kg payload capacity
15 kg unit weight
Acceleration: 60 m/s² for rapid cycle times
Repeatability: 0.5 mm

Mounts to: standard machine frames or gantry structures.

Communication: EtherCAT controller supporting CiA 402 Drive Profile, Modbus TCP, CANopen, and digital I/O.

Protection/Conditions: Suited for dense environments where IP rating and working temperature should be referenced in the dedicated specs section.

Features:

Servo-driven delta parallel robot design for precision and speed
High dynamic performance with velocity up to 3 m/s enables demanding pick-and-place applications
Closed-loop servo technology eliminates gain tuning steps
Compact mechanical footprint reduces wiring and conserves space

Ideal for high-speed repetitive tasks where precision matters, the DLE-DR-360-FT achieves cycle times faster than SCARA and offers competitive performance compared to cartesian robots and 4-axis delta variants.

Applications:

Packaging line pick-and-place
Parts sorting
Light assembly
Laboratory automation

Used by machine builders and integrators seeking precision motion and efficient automation throughput.

Internal Links:

FAQ:

What is a 3-axis delta robot? A 3-axis delta robot is a parallel-kinematic robotic arm with three degrees of freedom, optimized for high-speed pick-and-place automation.
What are typical cycle times? Cycle times depend on payload and travel, but the DLE-DR-360-FT’s acceleration (60 m/s²) makes it noticeably faster than SCARA or cartesian machines for repetitive movement.
Which industries use delta robots? Delta robots like the Fastech DLE-DR-360-FT are common in packaging, sorting, assembly, and laboratory settings.
How does a delta robot compare to a cartesian or 4-axis delta? Delta robots deliver quicker cycle times and improved spatial efficiency versus cartesian setups, while 3-axis designs offer simplicity compared to more complex 4-axis variants.

Weight15 kg

Working Space Diameter360 mm

DOF: 3
Max Payload: 5 kg
Max Speed: 3
Repeatability: 0.5 mm
Payload: 5 kg
Reach: 360 mm
Maximum Speed: 3 m/s
Maximum Acceleration: 60 m/s²
Mounting Interface: Standard machine frames or gantry structures
Model: Fastech DLE-DR-360-FT-EtherCAT-3x

Hits 3 m/s and 60 m/s² acceleration for high-speed pick-and-place
EtherCAT controller with CiA 402 Drive Profile integration
Closed-loop servo technology, no gain tuning needed
Compact parallel design cuts wiring and workspace footprint
Modbus TCP, CANopen, and digital I/O connectivity supported
360 mm working diameter with 0.5 mm repeatability for precise handling
Handles packaging, sorting, assembly, and lab automation tasks

: A delta arm robot is a parallel-kinematic robot with three degrees of freedom, optimized for high-speed pick-and-place automation. The Fastech DLE-DR-360-FT is a three-axis delta robot that reaches 3 m/s velocity and 60 m/s² acceleration, making it faster than SCARA or cartesian robots for repetitive tasks.
: The Fastech DLE-DR-360-FT reaches 3 m/s velocity with 60 m/s² acceleration, enabling rapid cycle times for high-speed pick-and-place applications. It achieves 0.5 mm repeatability across a 360 mm working diameter.
: The Fastech DLE-DR-360-FT has a 5 kg payload capacity, making it suitable for lightweight parts in packaging, sorting, assembly, and laboratory automation. The robot itself weighs 15 kg.
: The Fastech DLE-DR-360-FT has a 360 mm diameter working area with 0.5 mm repeatability for precise handling of parts. Its compact parallel design conserves workspace footprint in confined environments.
: The Fastech DLE-DR-360-FT features an EtherCAT controller with CiA 402 Drive Profile integration, and also supports Modbus TCP, CANopen, and digital I/O connectivity. Closed-loop servo technology eliminates the need for gain tuning.

Delta robot versus cartesian and SCARA systems:

The Fastech DLE-DR-360-FT is a 3-axis delta robot, chosen over cartesian and SCARA machines when speed and compact workspace are priorities. Delta parallel kinematics deliver faster cycle times and a smaller footprint than equivalent cartesian layouts, while the closed-loop servo design removes tuning overhead.

For high-speed packaging lines with payloads under 5 kg, the 3 m/s velocity and 60 m/s² acceleration cut cycle times compared to SCARA robots on equivalent part weights.
In confined assembly cells, the compact 360 mm working diameter and parallel design reduce wiring runs and floor space versus a cartesian gantry.
For parts sorting and repetitive pick-and-place with 0.5 mm precision needs, closed-loop servo technology eliminates manual gain tuning setup.
In laboratory automation and light assembly, the modular EtherCAT, Modbus TCP, and CANopen connectivity integrate into existing control networks without custom adapters.
